Sonus Faber Aida

ELEGANCE AND PRECISION

Aida, that takes its name from the most grandiose Opera by Giuseppe Verdi, is the pinnacle of the Sonus faber catalogue born from the heart of the team and combines tradition with technological innovation, sophistication with power.

A UNIQUE PROJECT

This “3 and 2/3 way” loudspeaker system features the patented “Stealth UltraflexTM”, for a better bass extension, the “Anima Legata” system and the “Tuned Mass Dampers”, for maximum elimination of inner spurious vibration, the patented “Zero Vibration Transmission”, for saving the listening environment from the spread of vibration and for a better performance of the infrawoofer, and the “Sound Field Shaping” technology, for a new dimensionality of sound and perceived size of the sound-stage.

THE "SILENT CASE"

The dual "waved" curvature increases structural strength and guarantees exceptional management of the inner energy produced by the drivers.

SOUND FIELD SHAPER™

This rear facing mid and high loudspeaker system is developed to make the music reproduction as natural as possible and precisely control the dimensionality and perceived size of the sound-stage. The listener will be able to optimize the Sound Field Shaper™ according to personal taste and listening room characteristics.

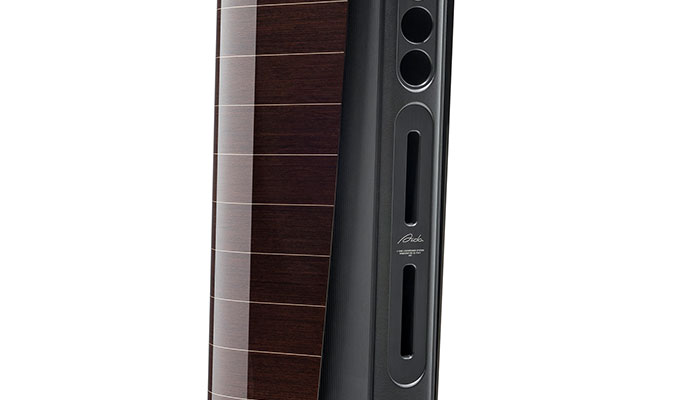

THE STEALTH ULTRAFLEX™ SYSTEM

This patented system allows a great reduction of the THD (Total Harmonic Distortion) and a better bass extension while eliminating spurious vibration coming from the air passage inside the reflex duct and allowing a reduction of dimensions of acoustic chambers.

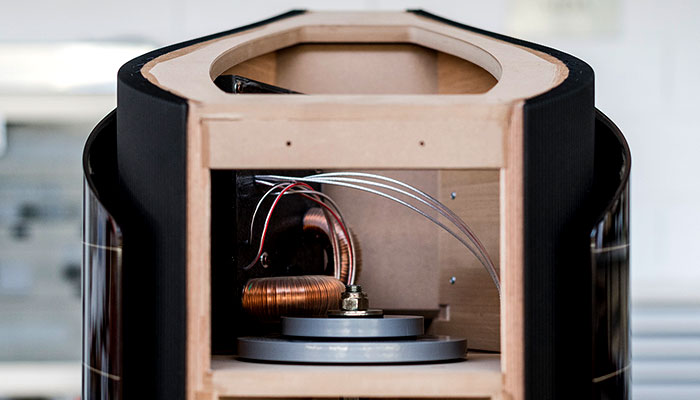

TUNED MASS DAMPER™

The TMD (Tuned Mass Damper™) is a device normally used in the biggest world’s skyscrapers and consists in some suspended masses placed inside of the speakers; while vibrating in antiphase, the TMD erases main vibrations and allows a clearer bass reproduction and a better silence reproduction.

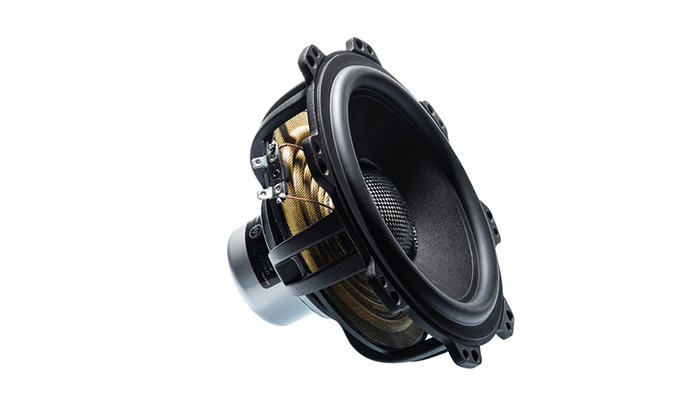

NEODYMIUM MAGNET SYSTEM

The most radical among the new changes of Aida is the selection of all-new driver systems, all of them featuring a Neodymium motor system that the "Ultra dynamic linearity" characteristic.

THE VOICE OF SONUS FABER

Mid and High frequencies that make the "Voice of Sonus faber" are here determined by a 28mm silk dome tweeter with ”Arrow Point” DAD™ (Damped Apex Dome), implemented with a natural wood acoustic labyrinth rear chamber, and a midrange M18XTR-04 with cellulose pulp cone and Neodymium motor system. This iconic configuration of tweeter and midrange maintain the effortless, warm and involving timber that has become our trademark.

ZERO VIBRATION TRANSMISSION™

The purpose of this technology is decoupling the loudspeaker system from the ground, avoiding spurious vibration to spread in the listening environment. Springs and elastomers are placed on the base; their decoupling compliance is carefully calculated in reason of the weight of the speaker and allows a more powerful performance of the down firing infrawoofer and a perfect tuning of the entire loudspeaker system.

Technical specification

COLOUR
Red, Wenge
SPEAKER BUILD
Drivers
BASS REFLEX
floor bassreflex
SYSTEM
3.5 way para-aperiodic vented box
SENSITIVITY
92 db SPL (2.83V/1 m)
LOUDSPEAKERS
Tw: H28 XTR-04 DAD Arrow Point, Ø 28 mm Md: M18 XTR-04 Neodymium Magnet System, Ø 180 mm W: 2 x W18XTR-12, Ø 180 mm Sw: 2 x W22XTR-16, Ø 220 mm
NOMINAL IMPEDANCE
4 ohm
SUGGESTED AMPLIFIER POWER OUTPUT
100 – 800 W, without clipping
CROSSOVER
80Hz – 250Hz – 2,500Hz
FREQUENCY RESPONSE
25 Hz – 35,000 Hz, Stealth reflex included
DIMENSIONS (L x W x H)
78.0 x 48.2 x 172.5
WEIGHT
165.0 kg
