Sonus Faber Il Cremonese



THE STRADIVARI’S VIOLIN

Inspired by the shape of Lilium, Il Cremonese is a tribute to the most famous creation of Antonio Stradivari. Its five non-parallel walls structure and the sides applied on the enclosure, requires a careful processing techniques, as for a musical instrument: from the wood bending and shaping, to the treatments of the precious Avional surfaces.

THE ORETICAL PERFECTION

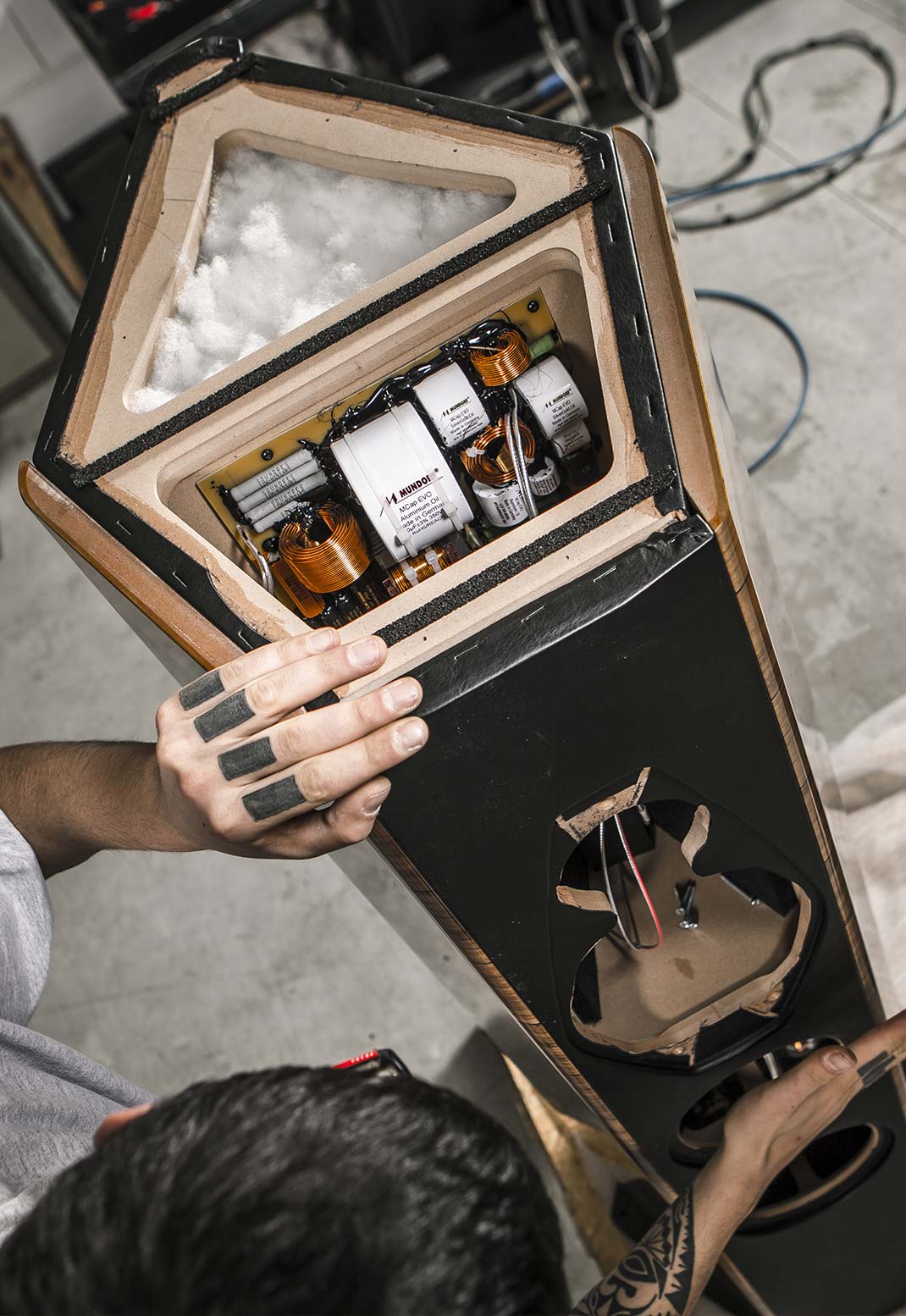

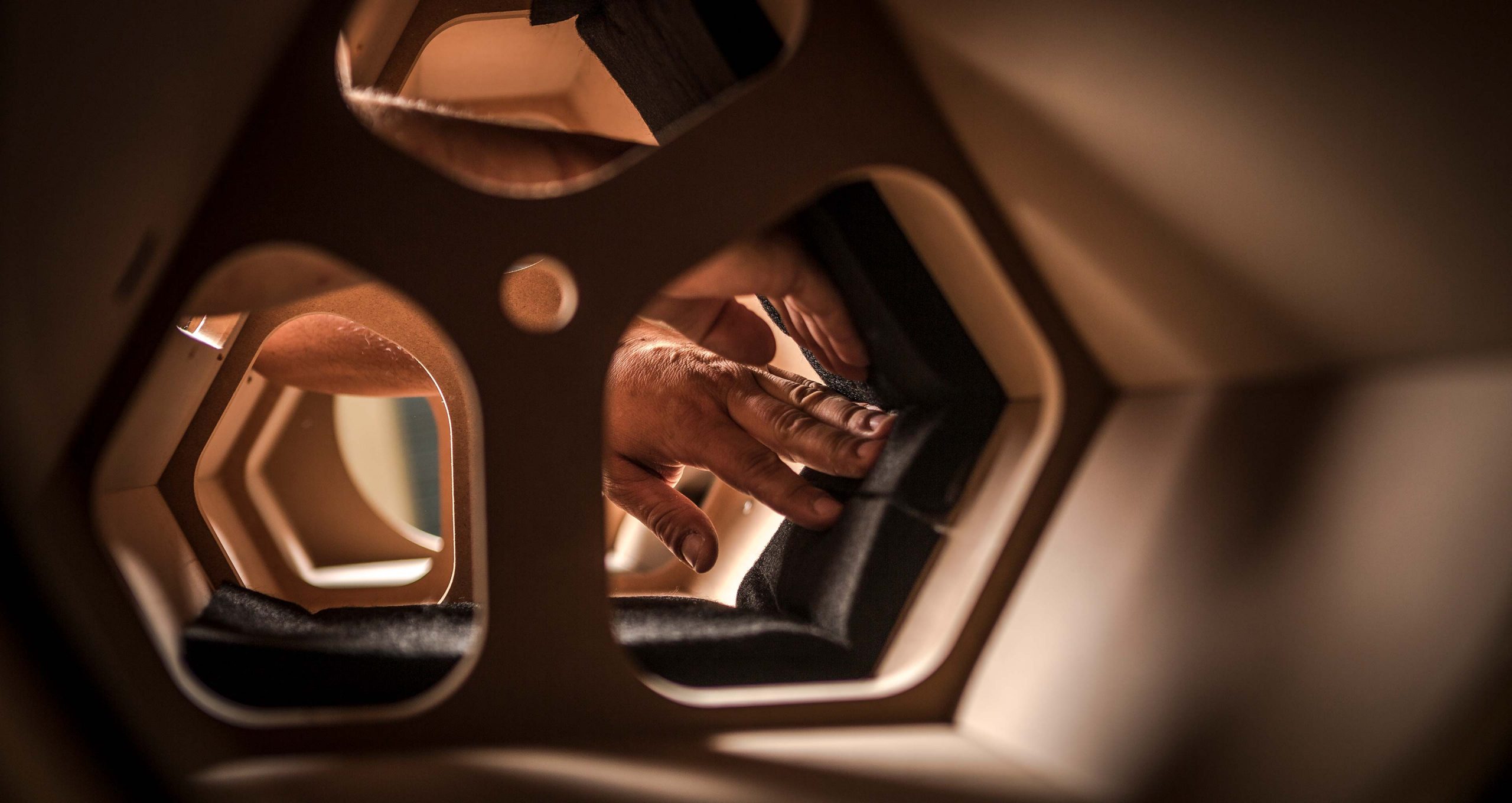

This is what we have in mind in designing the “acoustic environment” of each single transducer. Each volume is insulated with different materials from open cell thermoplastic foam to fibrous materials, similar to the felt used in pianos. The most appropriate material or materials are selected for each specific application.

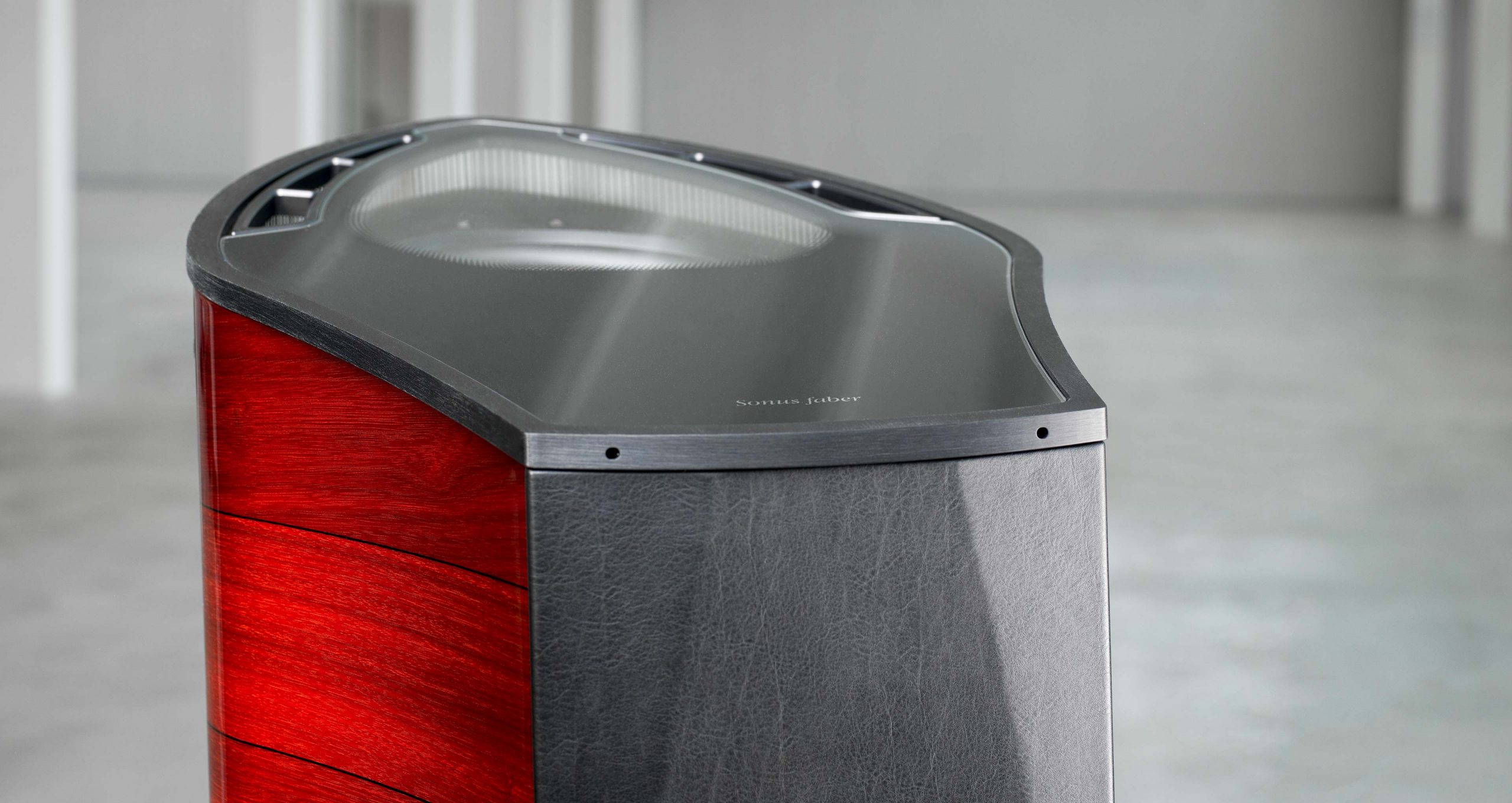

RHOMBOIDAL DIAMOND DESIGN

Il Cremonese innovative 5 sides cabinet “Rhomboidal diamond design” which optimizes the structural solidity of the wooden cabinets with a unique diamond shape that is immediately recognizable thanks to clean lines and an elegant, minimal, and sharp design.

STEALTH REFLEX™

The patented “para-aperiodic” interpretation of the tuned load. Besides allowing for a reduction in the dimensions of the cabinet size, it provides greater extension of the low frequency response and a dramatic containment of every form of distortion; also eliminating spurious ‘port’ noises, typical of traditional reflex systems. Thus, also, substantially contributing to the correct sound reproduction.

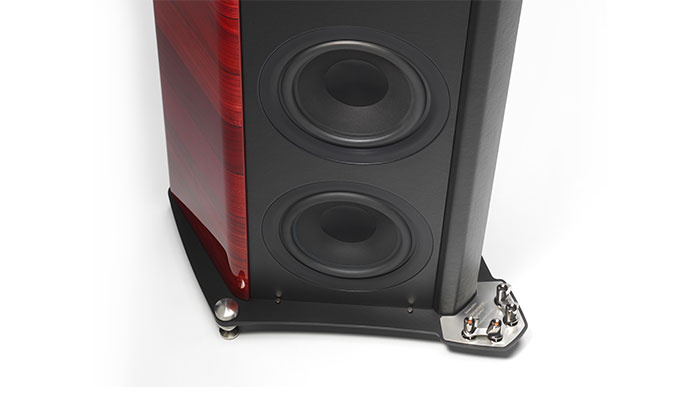

INFRAWOOFERS

SW 22 XT-08, a powerful 220 mm infra-woofer. To obtain maximum rigidity, the structure of the cone is made of a lightweight “sandwich” cone structure of syntactic foam and cellulose pulp. This is also implemented in an independent tuned enclosure, acoustically ‘amorphous Stealth Reflex™ chamber.

Technical specification

COLOUR
Red, Walnut, Wenge
SPEAKER BUILD
Drivers
BASS REFLEX
floor bassreflex
SYSTEM
3.5 way para-aperiodic vented box
SENSITIVITY
92 db SPL (2.83V/1 m)
LOUDSPEAKERS
Tw: H28 XTR-04 DAD Arrow Point, Ø 28 mm Md: M18 XTR-04 Neodymium Magnet System, Ø 180 mm W: 2 x W18XTR-12, Ø 180 mm Sw: 2 x W22XTR-16, Ø 220 mm
NOMINAL IMPEDANCE
4 ohm
SUGGESTED AMPLIFIER POWER OUTPUT
100 – 800 W, without clipping
CROSSOVER
80Hz – 250Hz – 2,500Hz
FREQUENCY RESPONSE
25 Hz – 35.000 Hz, Stealth reflex included
DIMENSIONS (L x W x H)
62.1 x 39.8 x 114.9
WEIGHT
103 kg
